Cut Diameter 300mm Double Column Fully Automatic Bandsaw Machine

Product Categories
SHEAN (CANGZHOU) CORP LTD
Contact Now

Cut Diameter 300mm Double Column Fully Automatic Bandsaw Machine

Brand Name : HEIYAN

Model Number : GZ4230

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Price : NEGOTIABLE

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50SETS PER MONTH

Delivery Time : 7-15DAYS

Packaging Details : Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE

belt line speed(m/min) : 40/60/80

Main generator power(kw) : 3

Cooling generator power (kw) : 0.09

Working clamp style : Hydraulic

Saw belt tighten style : Hand

Loading style : Extra roller

Name : Cut Diameter 300 mm Metal Double Column Band Sawing Machine

Contact Now

Cut Diameter 300 mm Metal Double Column Band Sawing Machine

Main Features:
1.Centralized control panel on top of saw bow
2.One-piece saw bow
3.Deluxe blade tension hand wheel
4.Deluxe Tru-lock vise system with absolute clamping force
5.Easy speed changes
6.Heavy-duty all steel, one piece base
7.Adjustable hydraulic down feed; just dial your feed rate on the control panel
8.Worm gear box has hardened and ground gears
9.Quick-release vise for fast job changes
10.Miter cutting ability
11.Blade wheels have heavy-duty ball bearings
12.Magnetic safety switch
13.Automatic shut off
14.Adjustable blade guide system

Type GZ4230
Cut capcity W*H (mm) round 300
square 300*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3620*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 3
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.04
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 80
Volume of water case (L) 60
Max single feeding (mm) 500
Working table height (mm) 650
Weights of machine (kgs) 700
Packing dimensions(mm) L*M*H 1750*2200*1450

The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Cut Diameter 300mm Double Column Fully Automatic Bandsaw Machine


Product Tags:

double column fully automatic bandsaw machine



diameter 300mm fully automatic bandsaw machine



double column bandsaw machine fully automatic


China Cut Diameter 300mm Double Column Fully Automatic Bandsaw Machine wholesale

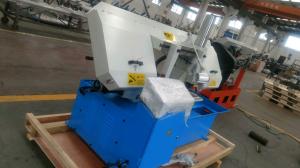

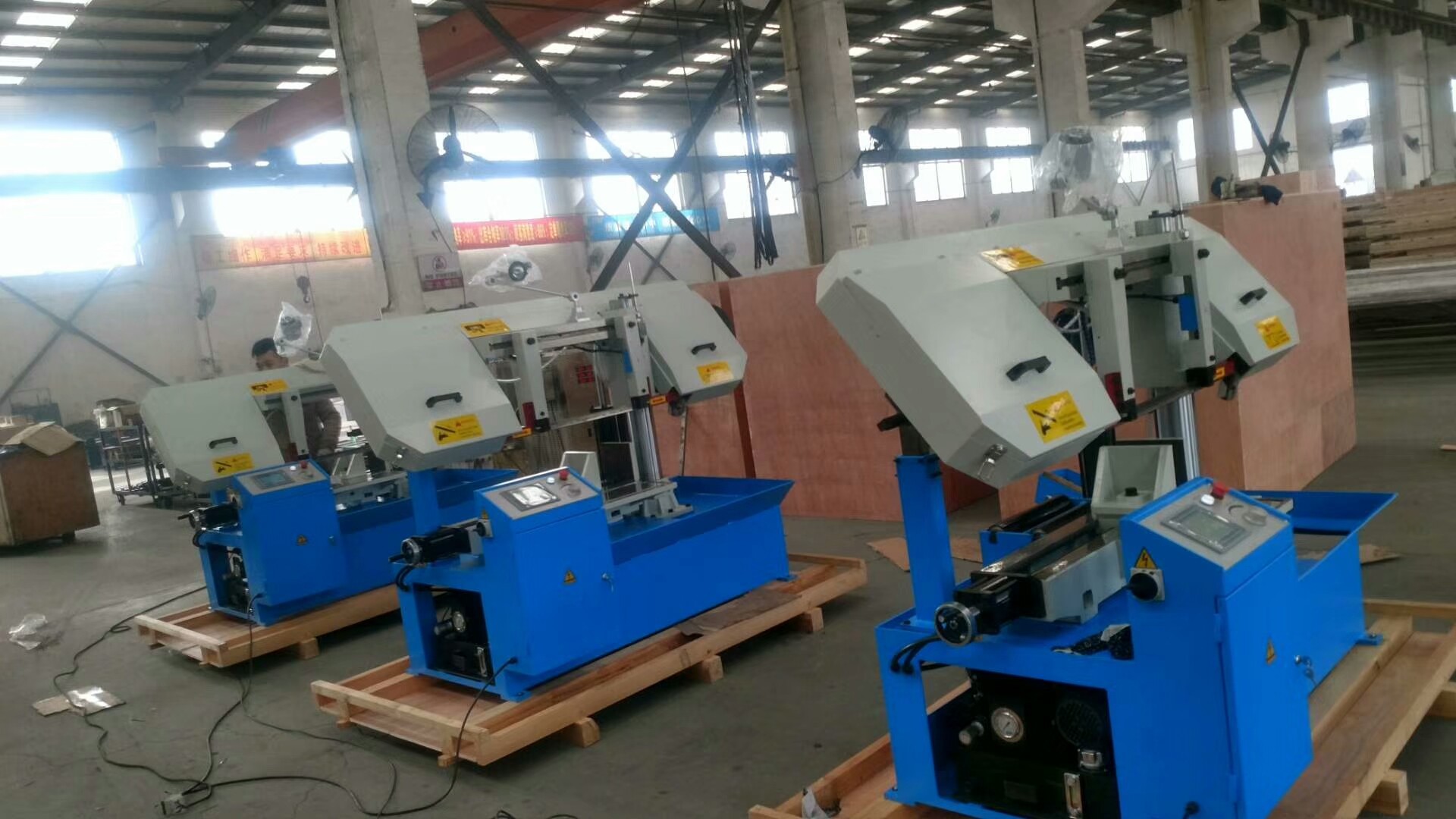

Cut Diameter 300mm Double Column Fully Automatic Bandsaw Machine Images
